Machined Grooves’ Function in Motorcycling
3 min read
/cloudfront-us-east-1.images.arcpublishing.com/octane/TTANDD6RINGQXGIXLJGDWN7LJ4.jpg)
George W. Patchett was one in every of Britain’s “wizards of tune” who made their approach by consulting with numerous bike producers. Within the Twenties he had raced for Brough and McEvoy—makers of huge V-twin-powered bikes—and for FN in Belgium. Then in 1930 he started work at Jawa that was ended by the outbreak of World Struggle II. His escape from Czechoslovakia befell on the final second and appears to have been relatively thrilling.
Returning to England, he discovered work at Sterling Armaments Co., the place in 1944 he designed a submachine gun meant as an enchancment upon the well-known however crude Sten. Prototypes had been favorably obtained however accuracy was an issue and so was “the mud take a look at.”
Patchett’s response to jamming of the Sterling’s blowback bolt was to offer its OD with helical grooves, such {that a} particle of grit trapped between bolt and receiver can be swept into one of many grooves, permitting the bolt to proceed to cycle freely.
In the end the Sterling was accepted by the British military as its normal postwar submachine gun, serving for a few years. Take a look on the British TV sequence “Final Publish,” concerning the Aden insurgency, and you will note males with Sterlings

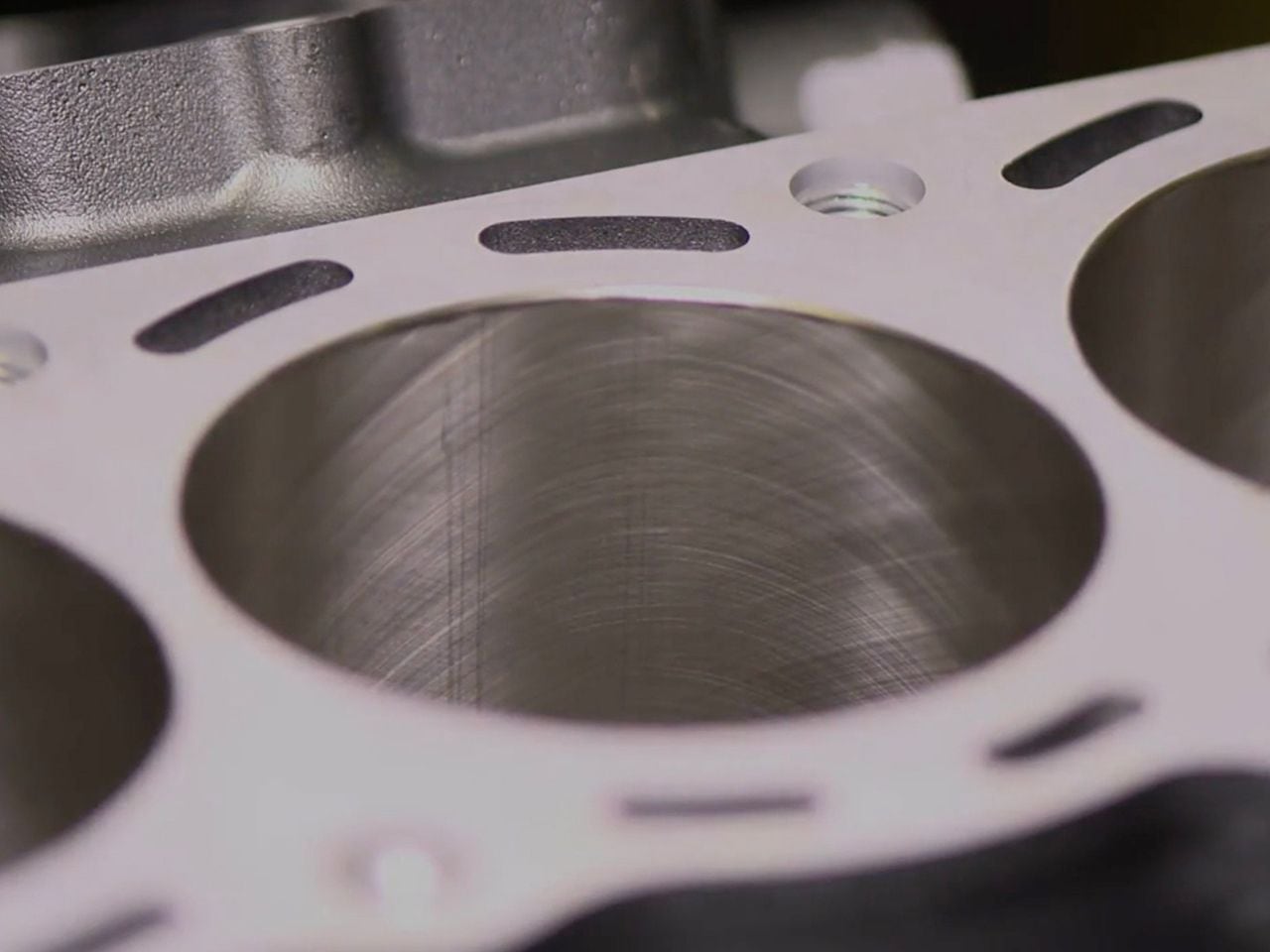

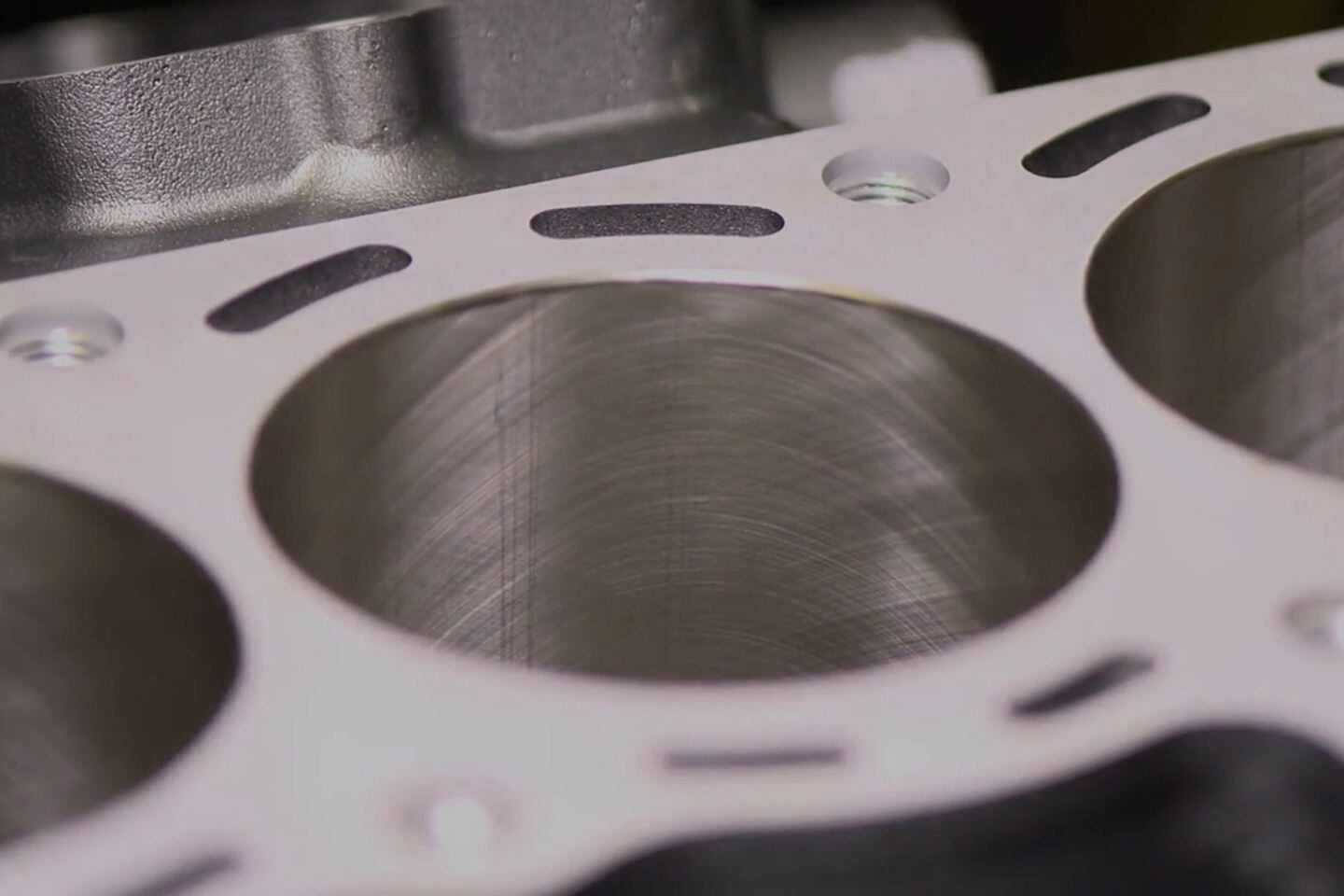

Just a few years in the past I had the pleasure of talking with an engineer employed by a piston producer. He described the trendy cylinder wall preparation referred to as “a plateau end” in a lot the identical phrases because the success of Patchett’s helically grooved bolt. A plateau hone begins with a reasonably coarse crosshatch hone, adopted by use of a finer set of stones. The result’s a myriad of small, clean plateaus surrounded by the deeper scratches left by the coarse hone. The graceful areas assist the piston and its rings.
“These deeper scratches defend the piston from micro-seizures,” the engineer mentioned. “If the beginnings of seizure happen on a given plateau, it could’t progress as a result of the seizure particles is straight away swept into one of many scratches.”
When within the Nineteen Sixties I first appeared into Yamaha’s vertically break up TD twins, I noticed an evolution within the design of the spring detent supplied to positively maintain the gearbox’s shift plate in gear. This took the type of V-shaped indents within the OD of the plate, into which a spring-backed 10mm metal ball would click on at every shift, stopping unintended rotation of the plate.
Sadly, the ball didn’t work very nicely; it made solely round line contact with the bore that held it and its spring, and the ensuing excessive native strain generally produced extreme resistance, making shifting notchy.
The following design was a tubular and round-ended plunger that fitted into the identical bore as had the earlier ball detent. As a result of side-pressure on the detent plunger was now unfold over the size of the plunger, side-force throughout shifting not jammed it. Shifting improved.
However particulate particles from gearbox put on may and evidently did get between the plunger and its bore, often inflicting the plunger to stay and not maintain the shift plate in its six positions (first, impartial, and ratios 2, 3, 4, and 5).
The following yr’s mannequin had a brand new detent plunger, now with George Patchett–like spiral grooves in its OD, into which particulates can be swept, making the detent way more proof against jamming.
None of those functions was devised by a pc or recovered from an unlimited database by AI. They had been the results of ingenious thought by precise people.
